碳钢主体——尼龙球头

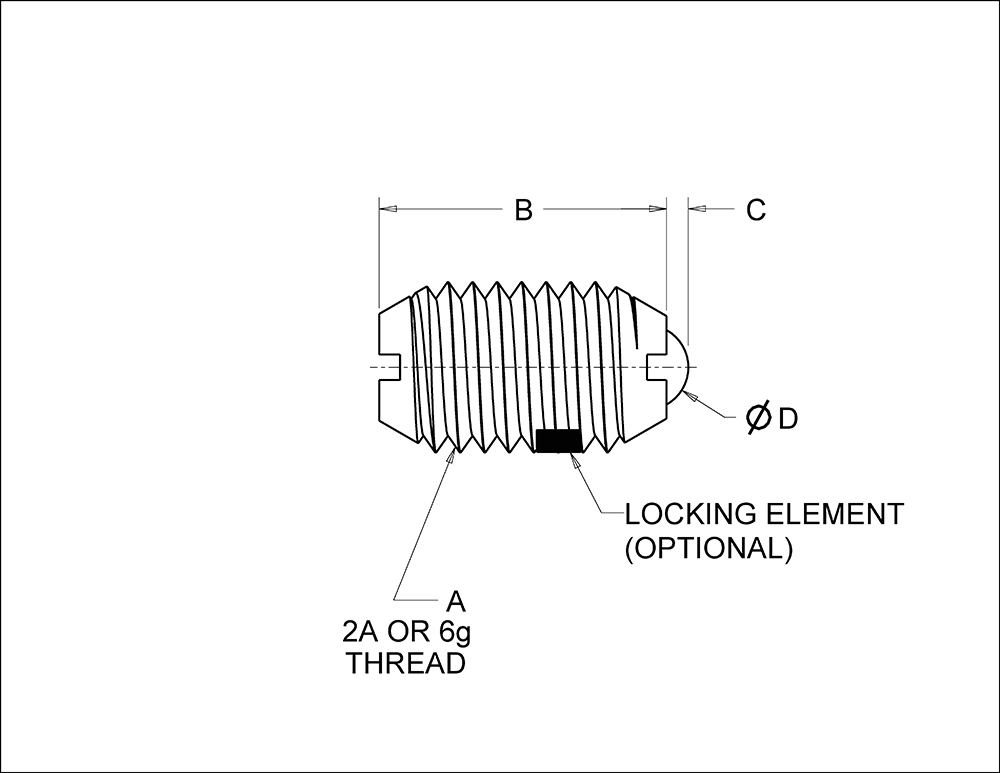

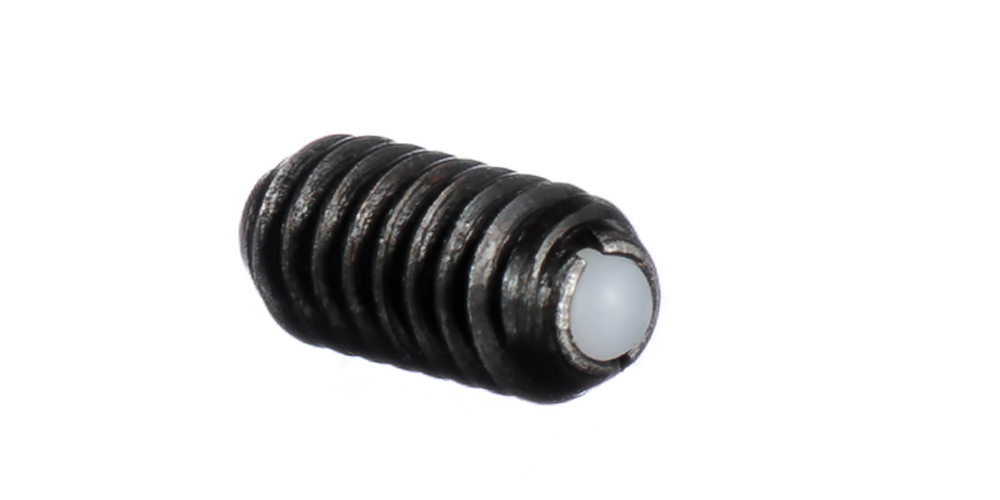

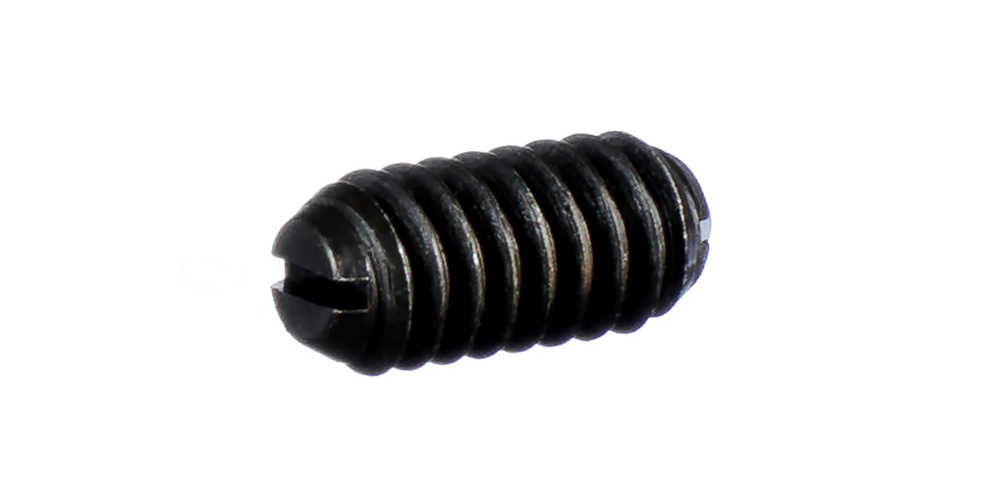

VLIER碳钢主体——尼龙球头弹簧柱塞提供耐反复冲击、防潮、防化学溶剂、耐高温(华氏190°/ 摄氏87.78 °)。柱塞头更具有电绝缘的特性。
不锈钢主体—尼龙球头
VLIER不锈钢主体—尼龙球头具有额外的防锈耐腐蚀的特性,为您提供最大限度的保护。
磅&牛顿转换: | |||||||||
产品型号 | 端面压力(磅) |
螺纹等级 |
英寸 |
英寸 |
英寸 |
||||
---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
DB46 | DB46P | 1/8 |
1/2 |
4-48 |
.187 |
.020 |
.062 |
||
DB47 | DB47P | 1/4 |
3/4 |
5-40 |
.250 |
.020 |
.062 |
||
DB48 | DB48P | 1/2 |
1 |
6-40 |
.312 |
.023 |
.078 |
||
DB50A | DB50AP | 1/2 |
1-1/4 |
8-32 |
.344 |
.025 |
.094 |
||
DB50 | DB50P | 1/2 |
1-1/4 |
8-36 |
.344 |
.025 |
.094 |
||
DB52 | DB52P | 1-1/2 |
3 |
10-32 |
.513 |
.025 |
.094 |
||
DBL52 | DBL52P | 1/2 |
1-1/2 |
10-32 |
.513 |
.025 |
.094 |
||
DBH52 | DBH52P | 2 |
5 |
10-32 |
.513 |
.025 |
.094 |
||
DB54 | DB54N | 3 |
7 |
1/4-20 |
.531 |
.035 |
.125 |
||
DBL54 | DBL54N | 2 |
4 |
1/4-20 |
.531 |
.035 |
.125 |
||
DBH54 | DBH54N | 4 |
12 |
1/4-20 |
.531 |
.035 |
.125 |
||
DB56 | DB56N | 4 |
9 |
5/16-18 |
.578 |
.040 |
.156 |
||
DBL56 | DBL56N | 2 |
4-1/4 |
5/16-18 |
.578 |
.040 |
.156 |
||
DBH56 | DBH56N | 6 |
17 |
5/16-18 |
.578 |
.040 |
.156 |
||
DB58 | DB58N | 5 |
10 |
3/8-16 |
.625 |
.048 |
.188 |
||
DBL58 | DBL58N | 2-1/5 |
5 |
3/8-16 |
.625 |
.048 |
.188 |
||
DBH58 | DBH58N | 6 |
21 |
3/8-16 |
.625 |
.048 |
.188 |
||
DB60 | DB60N | 6 |
12 |
1/2-13 |
.750 |
.072 |
.281 |
||
DBL60 | DBL60N | 3 |
6 |
1/2-13 |
.750 |
.072 |
.281 |
||
DBH60 | DBH60N | 6 |
30 |
1/2-13 |
.750 |
.072 |
.281 |
||
DB62 | DB62N | 9 |
18 |
5/8-11 |
.984 |
.096 |
.375 |
||
DBL62 | DBL62N | 4-1/2 |
9 |
5/8-11 |
.984 |
.096 |
.375 |
||
DBH62 | DBH62N | 7 |
50 |
5/8-11 |
.984 |
.096 |
.375 |
*锁紧元件置于螺纹表面。
磅&牛顿转换: | |||||||||
产品型号 | 端面压力(N) |
螺纹等级 |
英寸 |
英寸 |
英寸 |
||||
---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
DSSB46 | DSSB46 | 1/8 |
1/2 |
4-48 |
.187 |
.020 |
.062 |
||
DSSB47 | DSSB47P | 1/4 |
3/4 |
5-40 |
.250 |
.020 |
.062 |
||
DSSB48 | DSSB48P | 1/2 |
1 |
6-40 |
.312 |
.023 |
.078 |
||
DSSB50A | DSSB50AP | 1/2 |
1-1/4 |
8-32 |
.344 |
.025 |
.094 |
||
DSSB50 | DSSB50P | 1/2 |
1-1/4 |
8-36 |
.344 |
.025 |
.094 |
||
DSSB52 | DSSB52P | 1-1/2 |
3 |
10-32 |
.513 |
.025 |
.094 |
||
DSSBL52 | DSSBL52P | 1/2 |
1-1/2 |
10-32 |
.513 |
.025 |
.094 |
||
DSSBH52 | DSSBH52P | 2 |
5 |
10-32 |
.513 |
.025 |
.094 |
||
DSSB54 | DSSB54N | 3 |
7 |
1/4-20 |
.531 |
.035 |
.125 |
||
DSSBL54 | DSSBL54N | 2 |
4 |
1/4-20 |
.531 |
.035 |
.125 |
||
DSSBH54 | DSSBH54N | 4 |
12 |
1/4-20 |
.531 |
.035 |
.125 |
||
DSSB56 | DSSB56N | 4 |
9 |
5/16-18 |
.578 |
.040 |
.156 |
||
DSSBL56 | DSSBL56N | 2 |
4-1/4 |
5/16-18 |
.578 |
.040 |
.156 |
||
DSSBH56 | DSSBH56N | 6 |
17 |
5/16-18 |
.578 |
.040 |
.156 |
||
DSSB58 | DSSB58N | 5 |
10 |
3/8-16 |
.625 |
.048 |
.188 |
||
DSSBL58 | DSSBL58N | 2-1/5 |
5 |
3/8-16 |
.625 |
.048 |
.188 |
||
DSSBH58 | DSSBH58N | 6 |
21 |
3/8-16 |
.625 |
.048 |
.188 |
||
DSSB60 | DSSB60N | 6 |
12 |
1/2-13 |
.750 |
.072 |
.281 |
||
DSSBL60 | DSSBL60N | 3 |
6 |
1/2-13 |
.750 |
.072 |
.281 |
||
DSSBH60 | DSSBH60N | 6 |
30 |
1/2-13 |
.750 |
.072 |
.281 |
||
DSSB62 | DSSB62N | 9 |
18 |
5/8-11 |
.984 |
.096 |
.375 |
||
DSSBL62 | DSSBL62N | 4-1/2 |
9 |
5/8-11 |
.984 |
.096 |
.375 |
||
DSSBH62 | DSSBH62N | 7 |
50 |
5/8-11 |
.984 |
.096 |
.375 |
*锁紧元件置于螺纹表面。
磅&牛顿转换: | |||||||||
产品型号 | 端面压力(牛) |
螺纹等级 |
毫米 |
毫米 |
毫米 |
||||
---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
DBM3A | DBM3AP | 3.0 |
4.5 |
M3 x 0.5 |
7.0 |
0.4 |
1.5 |
||
DBM4A | DBM4AP | 4 |
10 |
M4 x 0.7 |
9.0 |
0.80 |
2.5 |
||
DBM5A | DBM5AP | 8 |
14 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
DBMH5A | DBMH5AP | 15 |
22 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
DBM6A | DBM6AP | 9 |
13 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DBML6A | DBML6AP | 2 |
6 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DBMH6A | DBMH6AP | 28 |
40 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DBM8A | DBM8AN | 15 |
30 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DBML8A | DBML8AN | 5 |
10 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DBMH8A | DBMH8AN | 40 |
60 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DBM10A | DBM10AN | 20 |
35 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DBML10A | DBML10AN | 8 |
15 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DBMH10A | DBMH10AN | 60 |
90 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DBM12A | DBM12AN | 30 |
55 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DBML12A | DBML12AN | 10 |
20 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DBMH12A | DBMH12AN | 75 |
115 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DBM16A | DBM16AN | 41 |
86 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
DBMH16A | DBMH16AN | 68 |
142 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
锁紧元件置于螺纹表面。
磅&牛顿转换: | |||||||||
产品型号 | 端面压力(牛) |
螺纹等级 |
毫米 |
毫米 |
毫米 |
||||
---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
DSBM3 | DSBM3P | 3.0 |
4.5 |
M3 x 0.5 |
7.0 |
0.4 |
1.5 |
||
DSBM4 | DSBM4P | 4 |
10 |
M4 x 0.7 |
9.0 |
0.80 |
2.5 |
||
DSBM5 | DSBM5P | 8 |
14 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
DSBMH5 | DSBMH5P | 15 |
22 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
DSBM6 | DSBM6P | 9 |
13 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DSBML6 | DSBML6P | 2 |
6 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DSBMH6 | DSBMH6P | 28 |
40 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
DSBM8 | DSBM8N | 15 |
30 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DSBML8 | DSBML8N | 5 |
10 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DSBMH8 | DSBMH8N | 40 |
60 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
DSBM10 | DSBM10N | 20 |
35 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DSBML10 | DSBML10N | 8 |
15 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DSBMH10 | DSBMH10N | 60 |
90 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
DSBM12 | DSBM12N | 30 |
55 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DSBML12 | DSBML12N | 10 |
20 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DSBMH12 | DSBMH12N | 75 |
115 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
DSBM16 | DSBM16N | 41 |
86 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
DSBMH16 | DSBMH16N | 68 |
142 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
锁紧元件置于螺纹表面。
端面压力色彩代码
